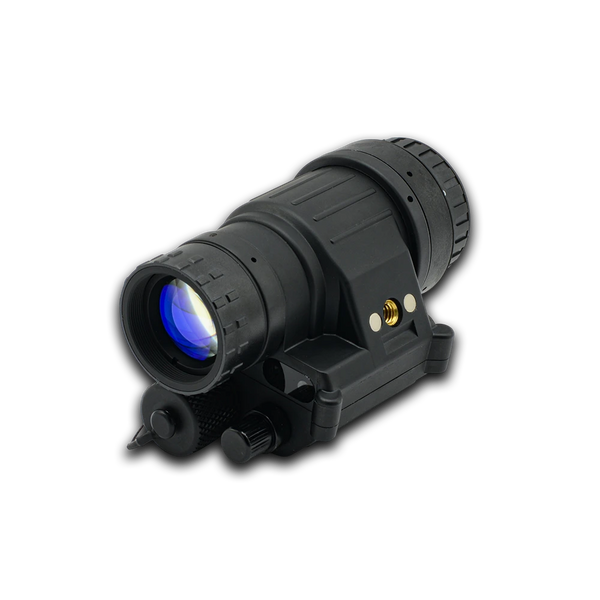

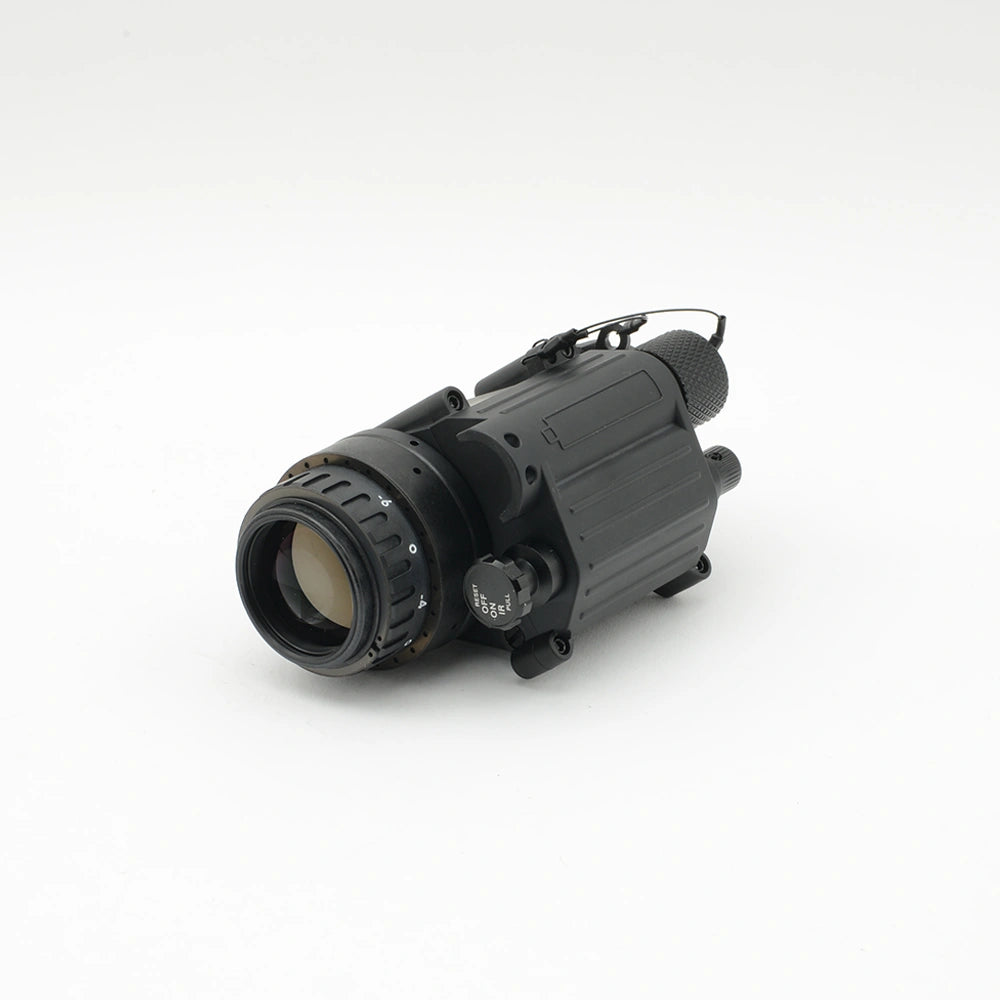

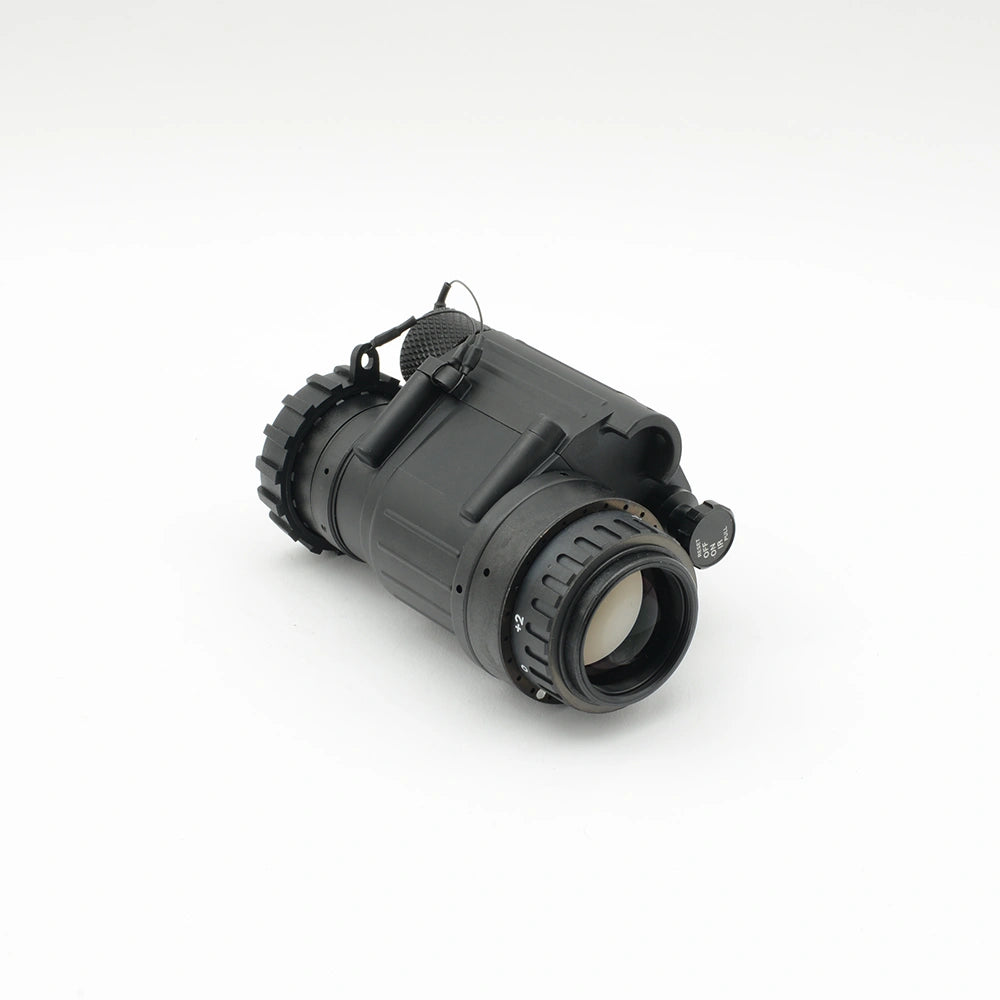

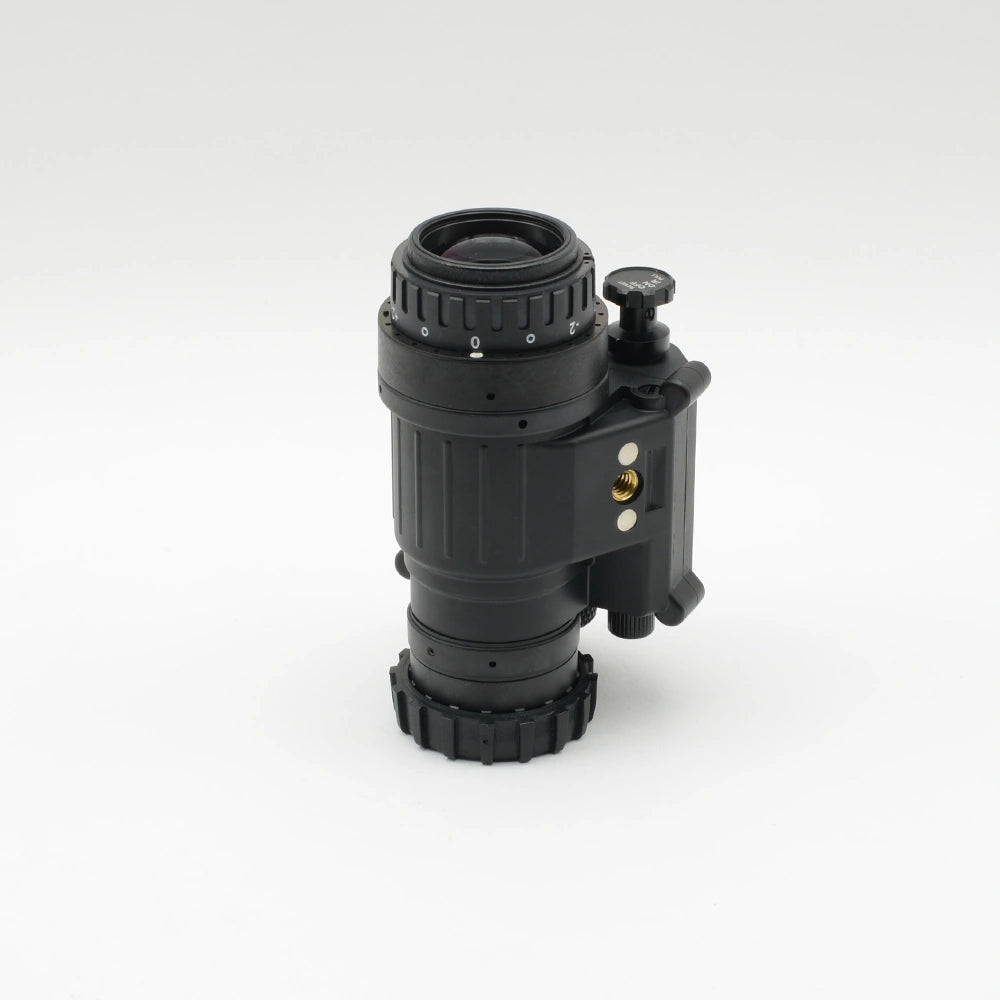

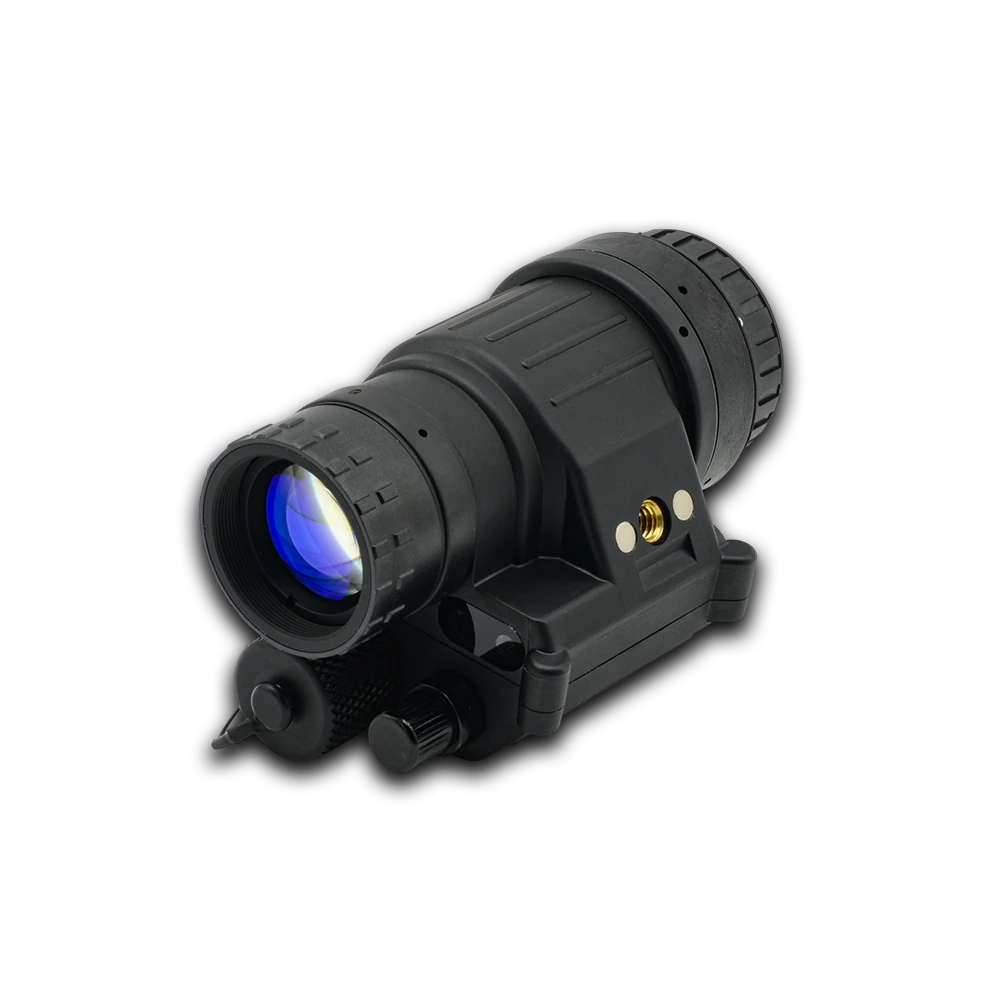

EON PVS-14 | Photonis XR5 High Gain Green Phosphor (Refurbished)

Best Value Green Phosphor Night Vision Monocular

Configurable with:

• Image Intensifier Tubes: Photonis XR5 (Autogated & Fixed Gain).
• Milspec or Commercial-Grade Lenses.

EON PVS-14 units are assembled and set up in-house in Germany.
Calibration and collimation close to boresight are performed on our mil-grade collimation and test station.
The device comes freshly vacuum tested and argon purged to ensure waterproofing.

Key Features:

• Commercial Grade EON PVS-14 Housing

• Variable Gain Control
• IR-Illuminator + IR-Indicator LED
• Automatic bright light shut-off
• Low battery indicator
• Powered by single AA Battery (work best with Alkaline batteries due to on board voltage protection)
• Waterproof: IP68 2 Meters for 1 Hour
• Pinhole Cover included

EON Housings work best with Alkaline batteries due to on board voltage protection.

Image Intensifer Tube Specifications:

XR5:
FOM: 1600 min
Resolution: 64 min
Gain: 12.000 - 23.000 (~ 37.700 - 72.255 converted to US gain units)

These are used dealer-surplus tubes, refurbished in the sense that they have been checked for functionality and cosmetics and come with a 1-year warranty.
Photonis XR5 tubes do not include an individual specification sheet but are minimum 1600+ FOM at production.

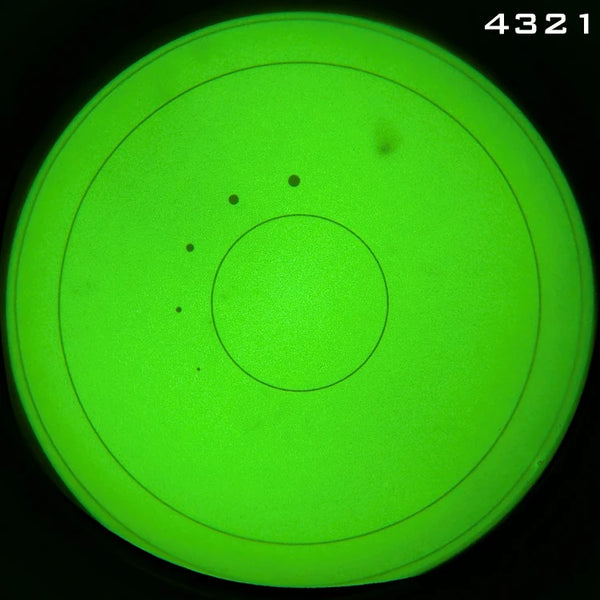

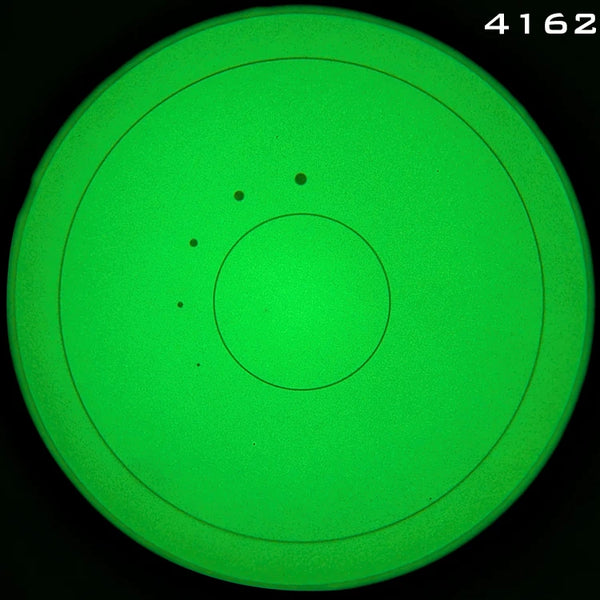

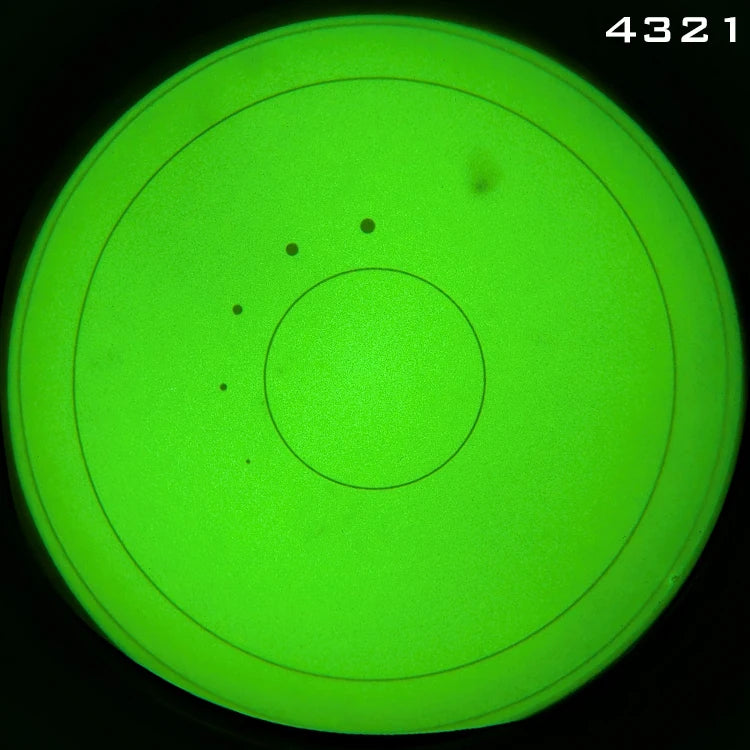

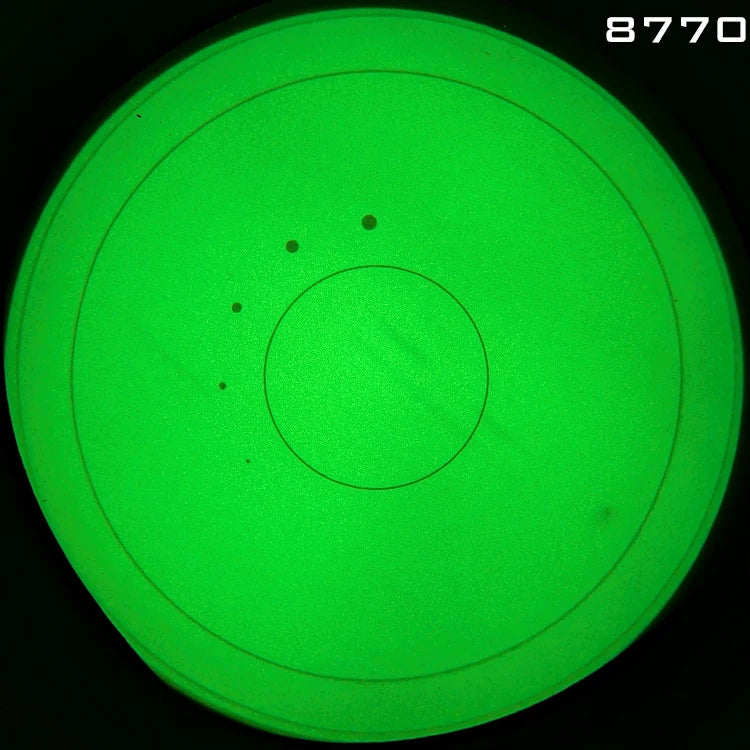

Grading Overview:

Grade A is mostly clean; only small spots or blemishes are allowed.
Grade B1: spots and blemishes allowed but mostly clean.
Grade B2: larger spots and blems.
Grade C has significant cosmetic issues - suited only for experimental purposes.

Customizable Lens Systems:

• Norinco LW40 Lightweight Lens (Commercial)
• BrightPath Solutions MIL40 Lens (Milspec)

Origin:
Image Intensifiers Manufactured in France/Netherlands
Housing Manufactured in China
Lenses Manufactured China or Singapore
Assembled in Germany
