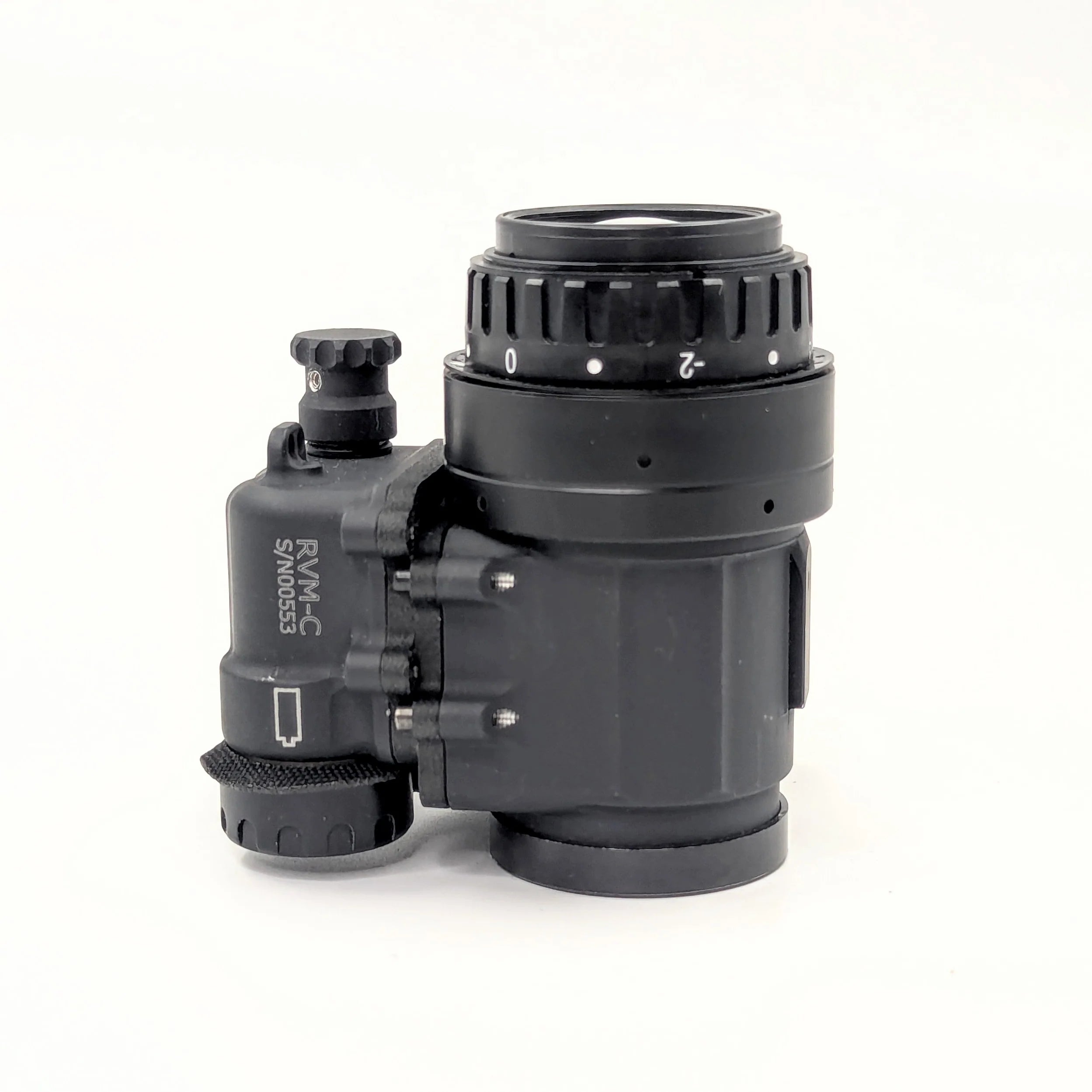

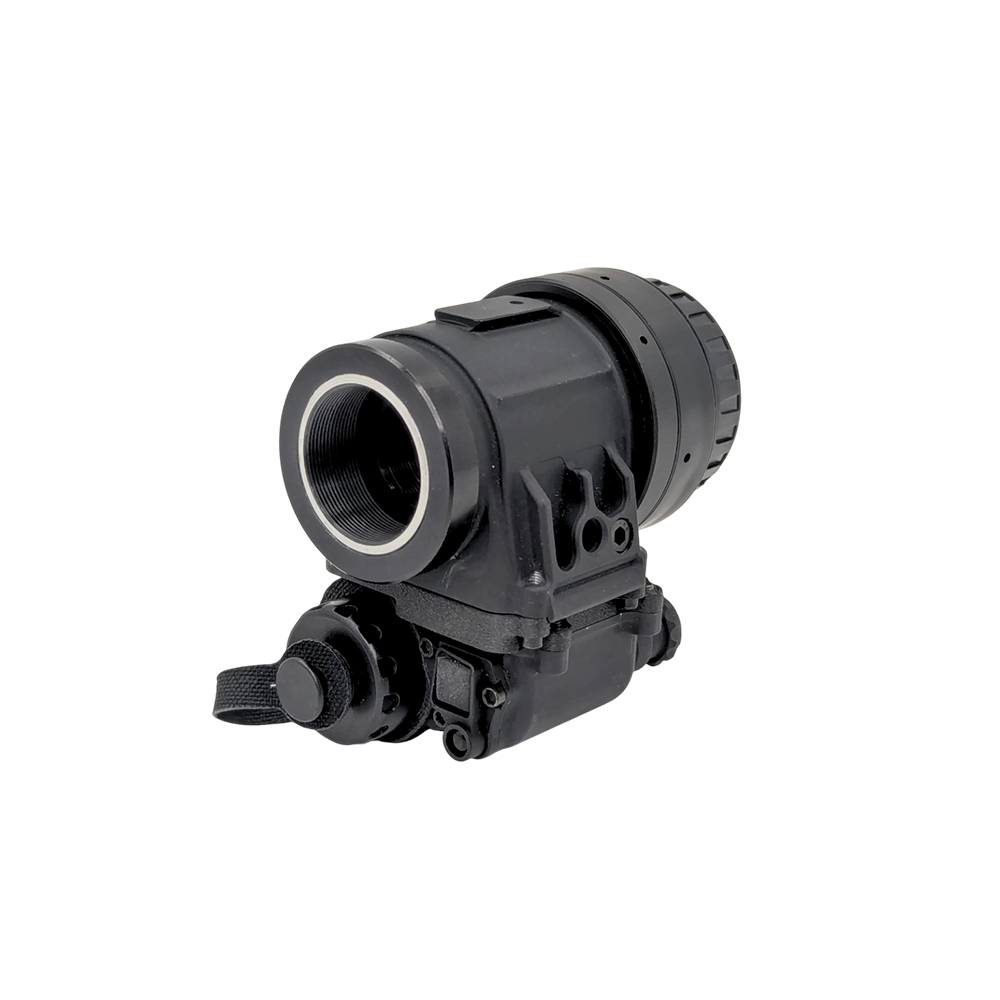

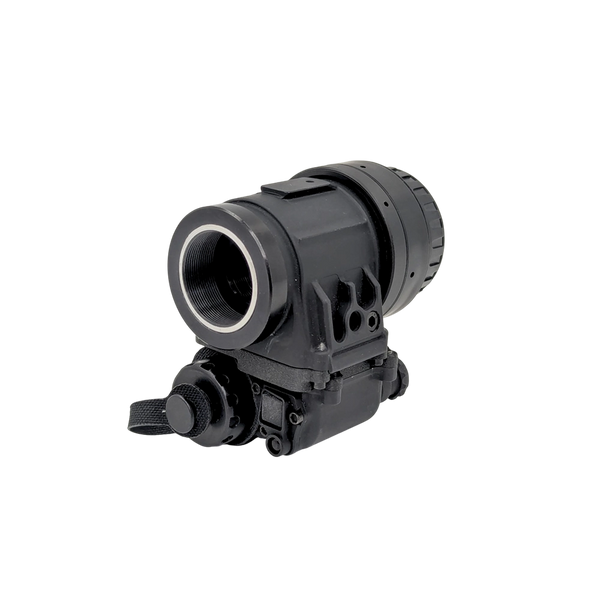

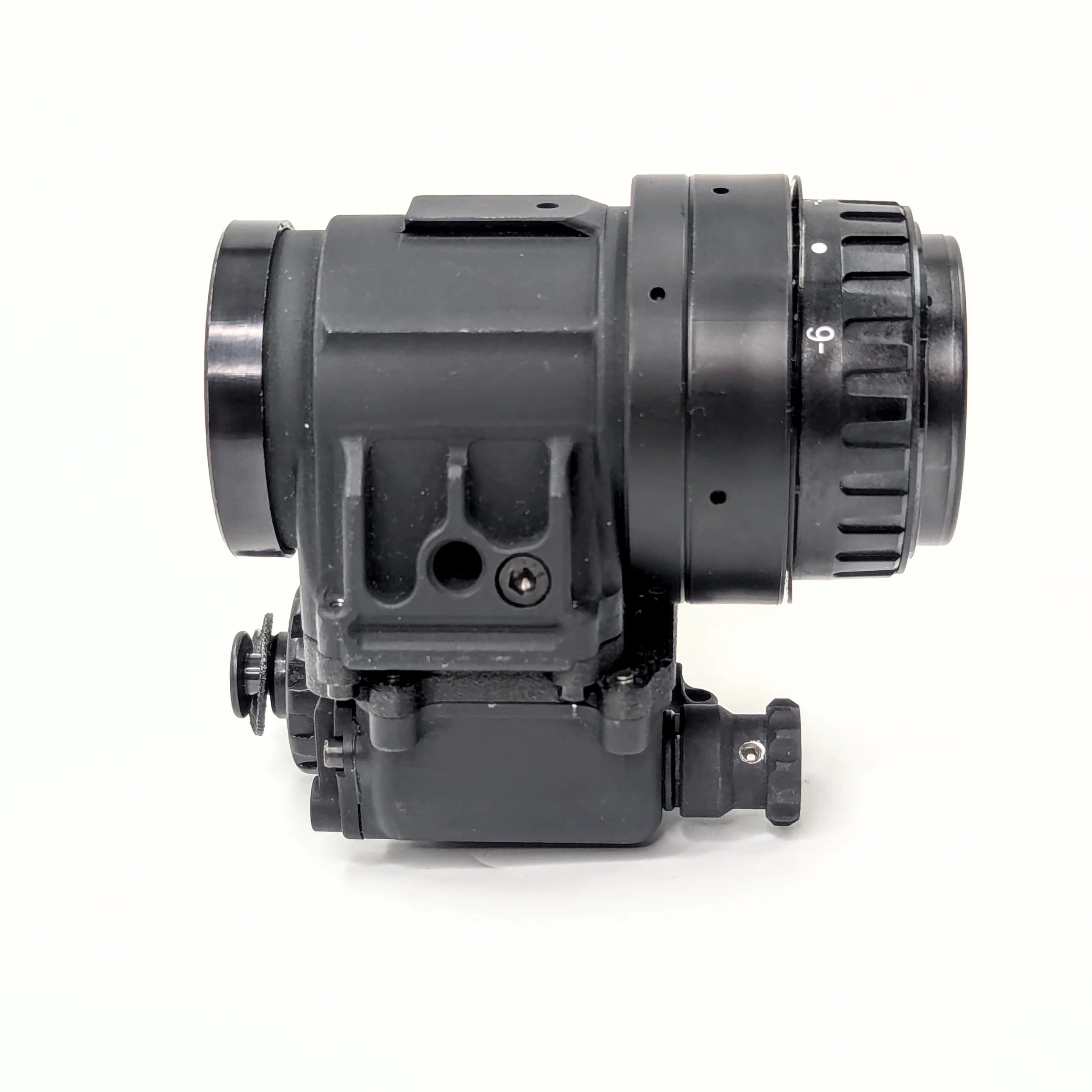

AB RVM-14 C-Mount Astronomy / Observation Monocular

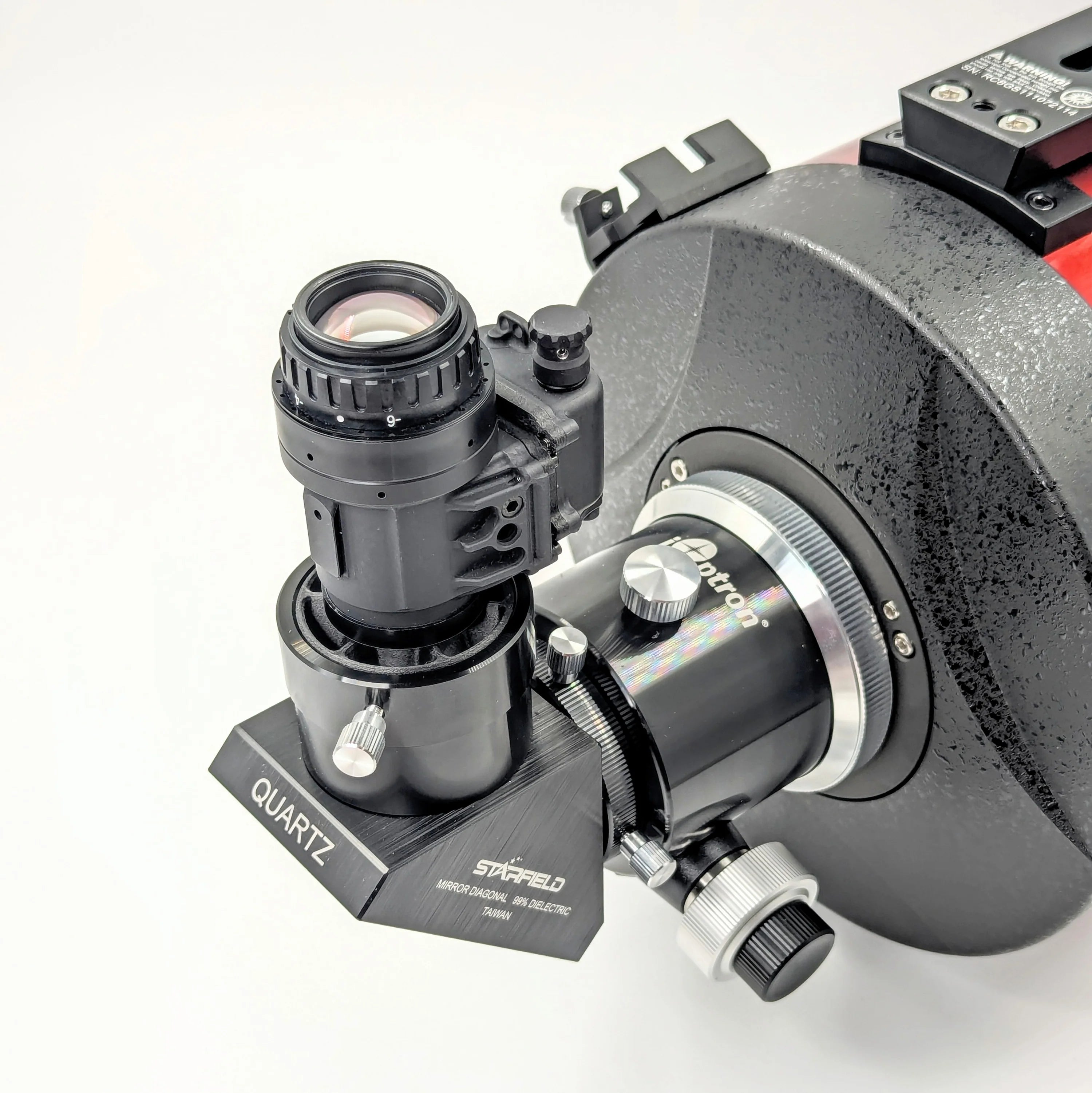

The AB Night Vision RVM-14 C Astro/Observation monocular allows the user to attach their own C-mount lens to achieve the desired field of view, or attach directly into a telescope using a barrel adapter. The device is built with a custom battery compartment relocation kit from ONSC which moves the battery compartment back toward the eyepiece side, allowing the front side to clear the width of a telescope adapter or a wider C-Mount lens.

Build Features:

• Manual gain
• Battery compartment relocation kit installed
• Low profile battery cap included

RVM-14 C Base Features:

• Power Source: (1) CR123 Size Battery

• Operation Time: Approximately 75 Hours at Room Temperature

• IR Illuminator: Built In

• IR LED & LOW BATTERY INDICATORS: YES
• Manual gain
• OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND C MOUNT OBJECTIVE
• Comes with a free Padded Optics Defender (POD) Pouch or a Peli 1150 Protective Case with Foam Insert.  Please specify the desired product and color/variants in the order notes in the cart.


The RVM-14 monocular housing is billet machined from 7075 aircraft grade aluminum and designed to handle challenging real-world environments. The housing design accepts Milspec PVS-14 eyepieces and C mount objective lenses.

It features a side mounting area to accept PVS-14 accessories and mounts with a standard ¼-20 thread. Two monos can also be attached to a bridge mount (RVM-14 Bridge) in a binocular configuration with the small dovetail incorporated into the top of the housing, or the dovetail can be used with the RVM-14 Arm for single mono use. Both the Arm and Bridge are articulating to lay back against the helmet when in the stowed position.

Warranty: 1 Year on Image Intensifier, 5 Years on Housing

Origin:
Housing Manufactured in USA with additional components Manufactured in Canada
Lenses Manufactured in USA or Singapore
Image Intensifiers Manufactured in France/Netherlands (Photonis)
Assembled in Canada
