AB Night Vision MGA
Tax included. Shipping calculated at Checkout.
Lead Time: 2 to 4 weeks

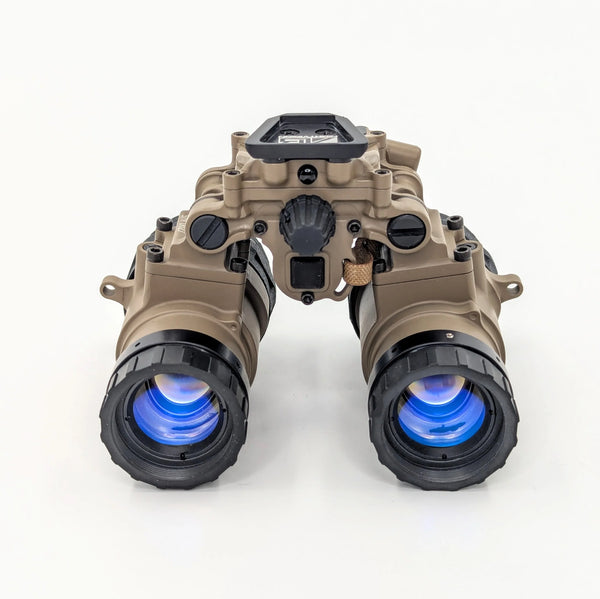

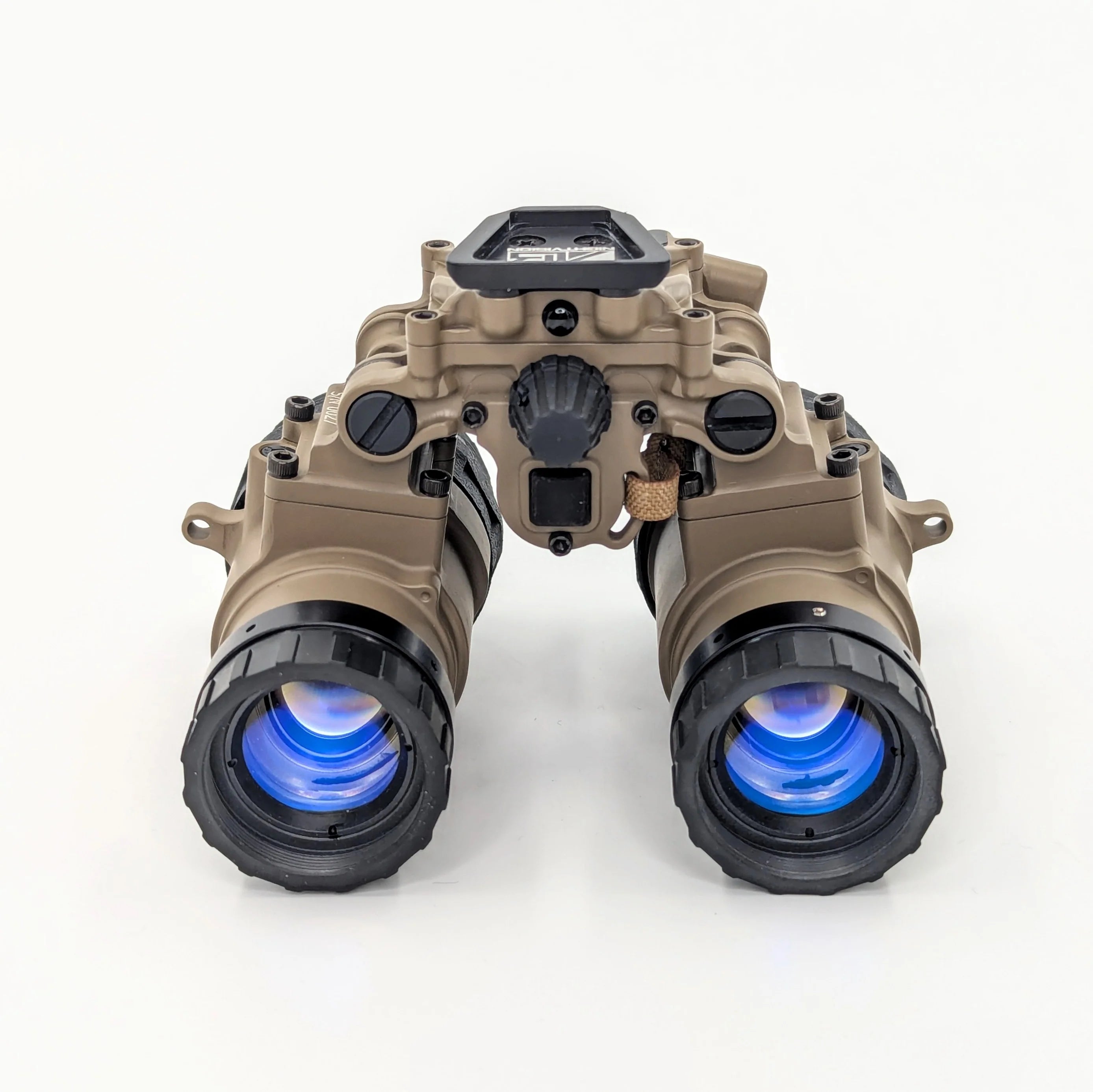

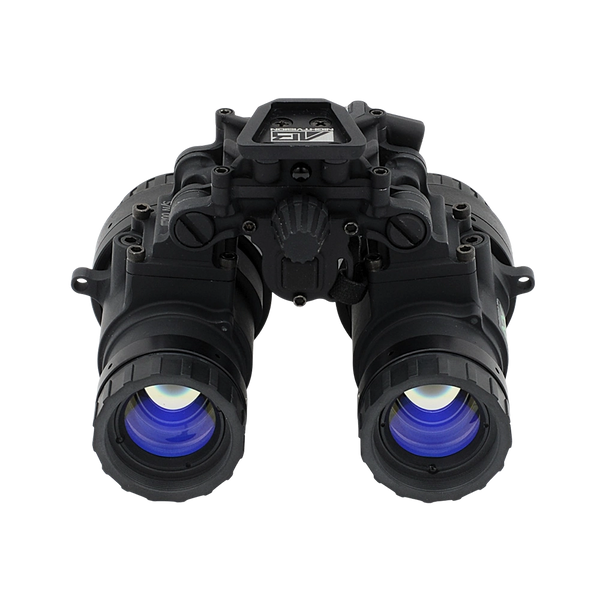

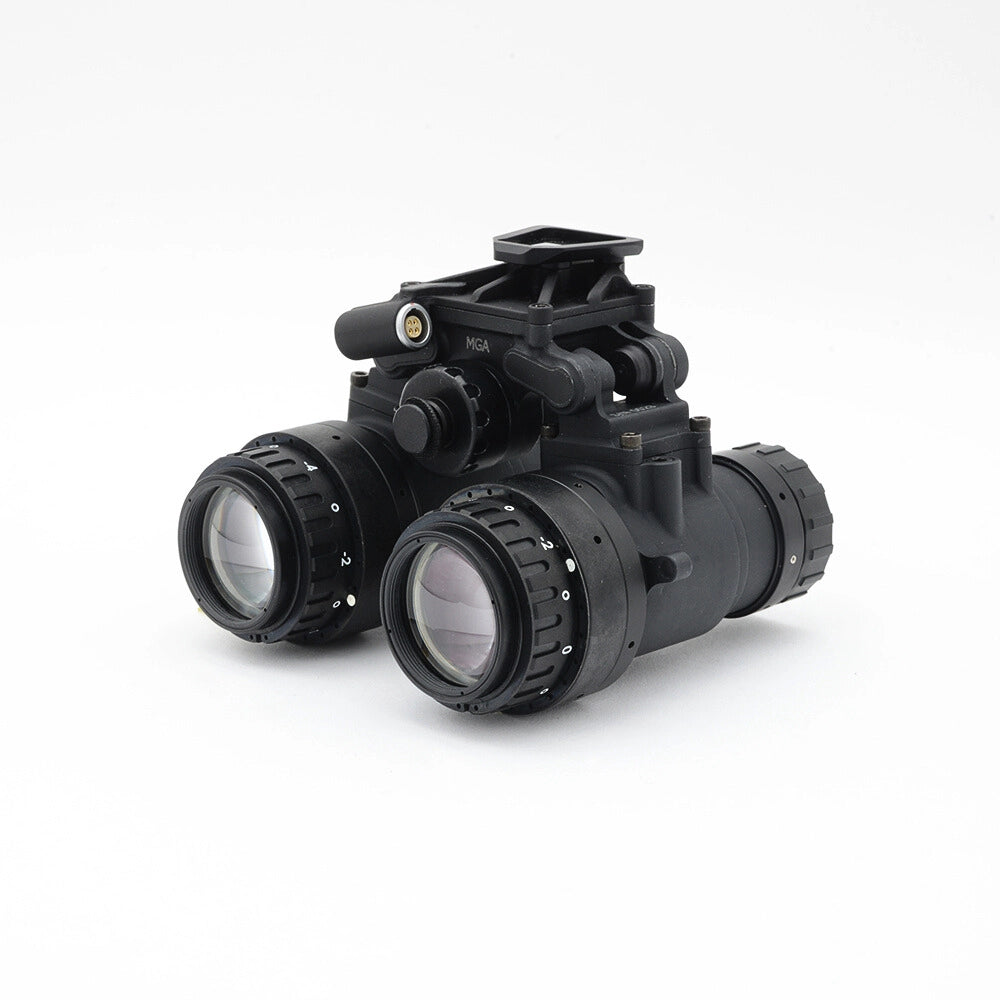

The MGA, or Manual Gain Articulating Binocular is an extremely tough, full featured night vision binocular. It builds upon the proven robust design of the RNVG-A and adds manual gain. The housing is billet machined from aircraft grade aluminum and designed to handle challenging real-world environments. During drop testing the housings far exceeded military requirements of MIL-STD-810H drop testing, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle.
The design includes a rotary switch for power and gain/brightness and a push button for the built in infrared illuminator. The IR illuminator button is guarded by a fence with distinctive contours to prevent inadvertently activating the IR illuminator. Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition. The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a 4 pin LEMO style connector.
Each optical pod can be rotated up out of the users view as desired, freeing one or both eyes for natural sight as conditions demand. When the goggle is helmet mounted and in the stowed position, the optical pods can be folded back flat against the helmet to minimize neck strain and better protect the goggle, and the user, from impacting overhead objects. The optical pods automatically turn off when articulated up. This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet. The force required to swing the optical pods is user adjustable using a coin or flathead driver.

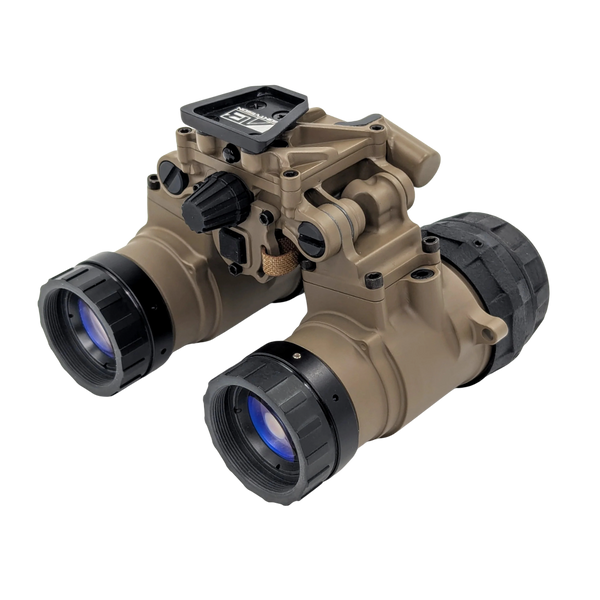

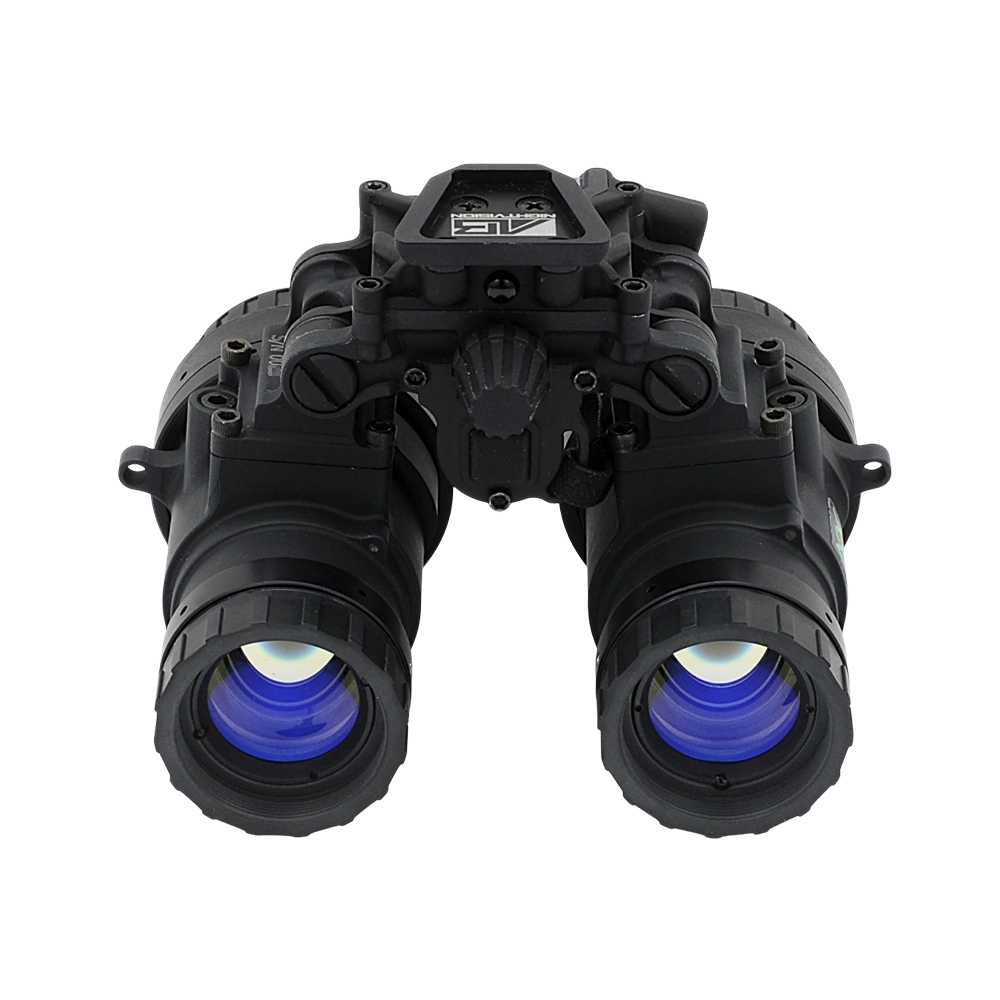

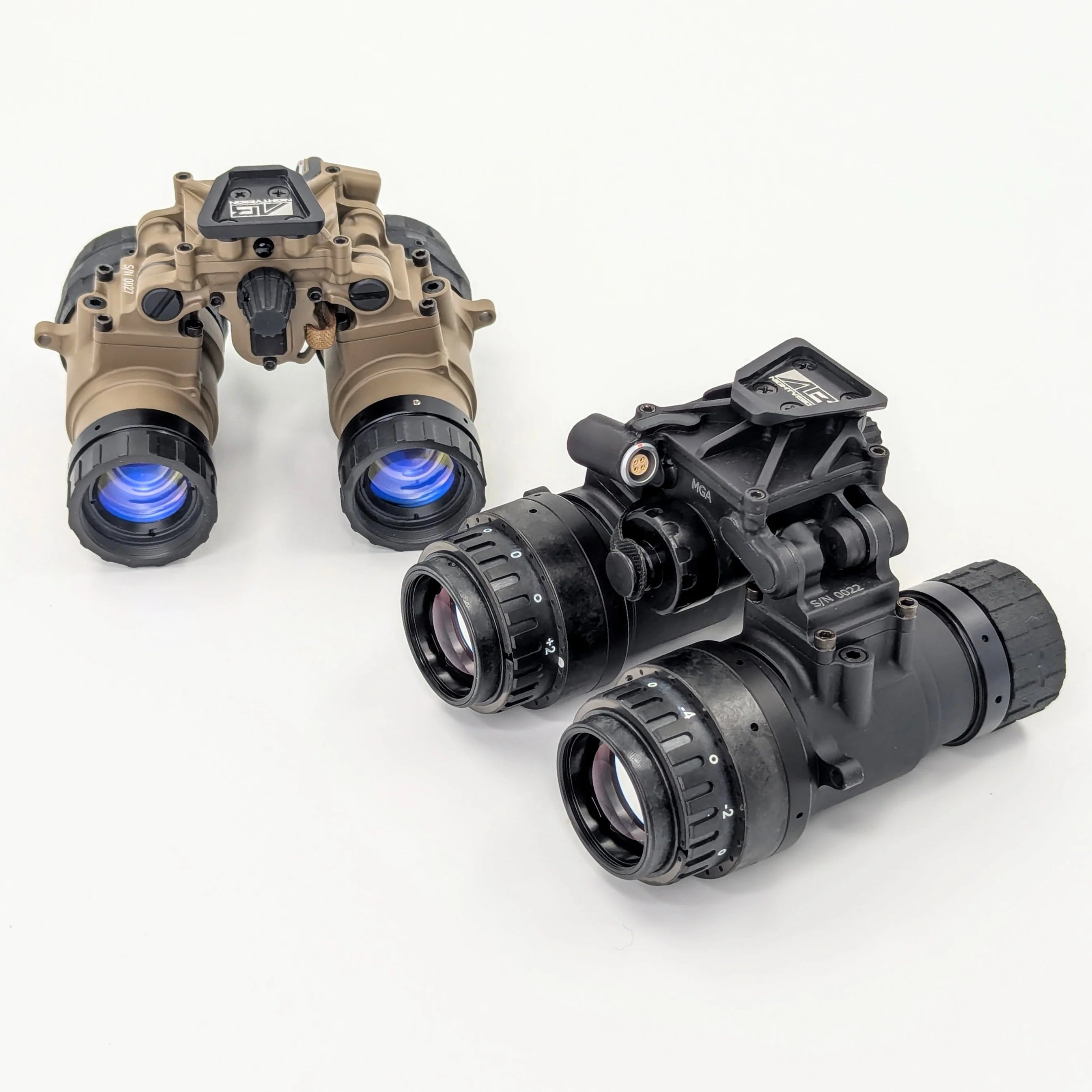

The goggle is available in Flat Black and Flat Dark Earth. The components of the binocular are media blasted to give a non-reflective matte finish, then black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to give a tough, attractive finish.
Key Features:
- Powered by single CR123, with LEMO port
- Variable gain control
- Durable, articuating binocular system
- Individually powered articulating pods
- Built in IR Illuminator
- CNC Machined From 7075 Billet Aluminum
- Waterproof to 66 feet

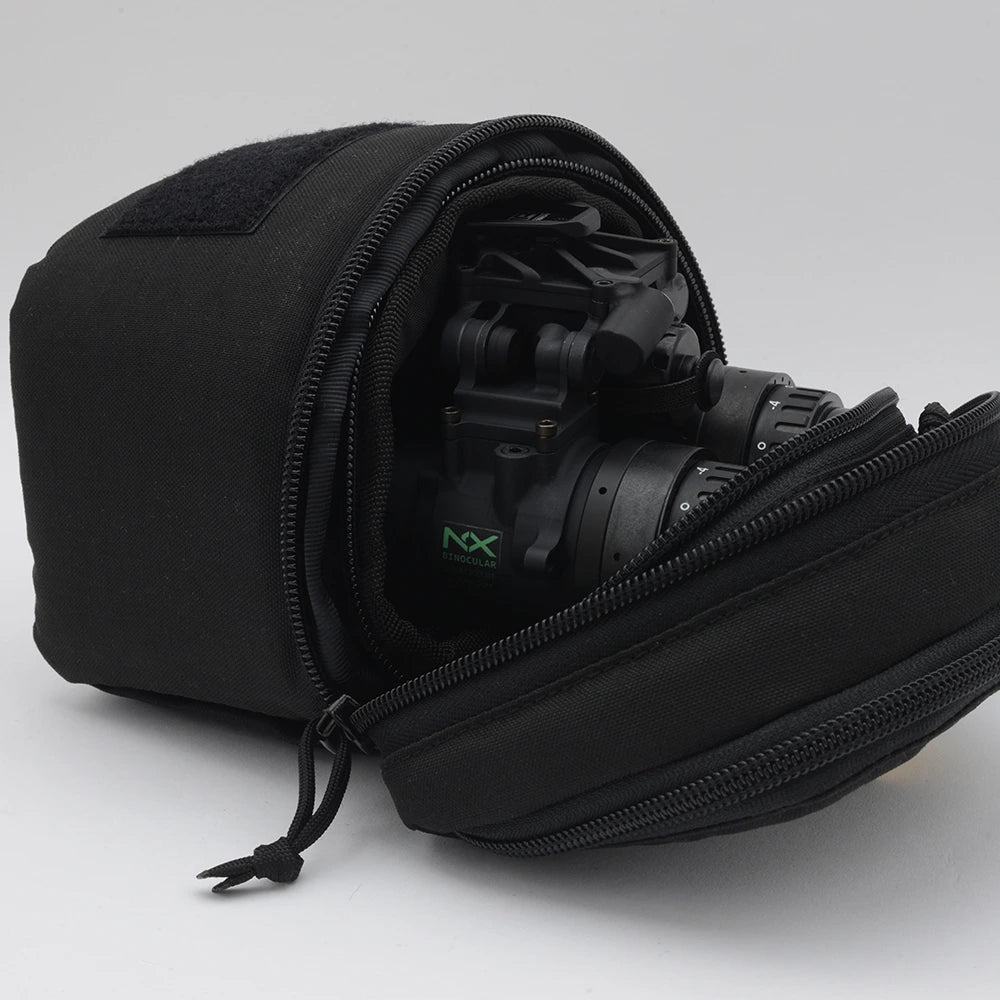

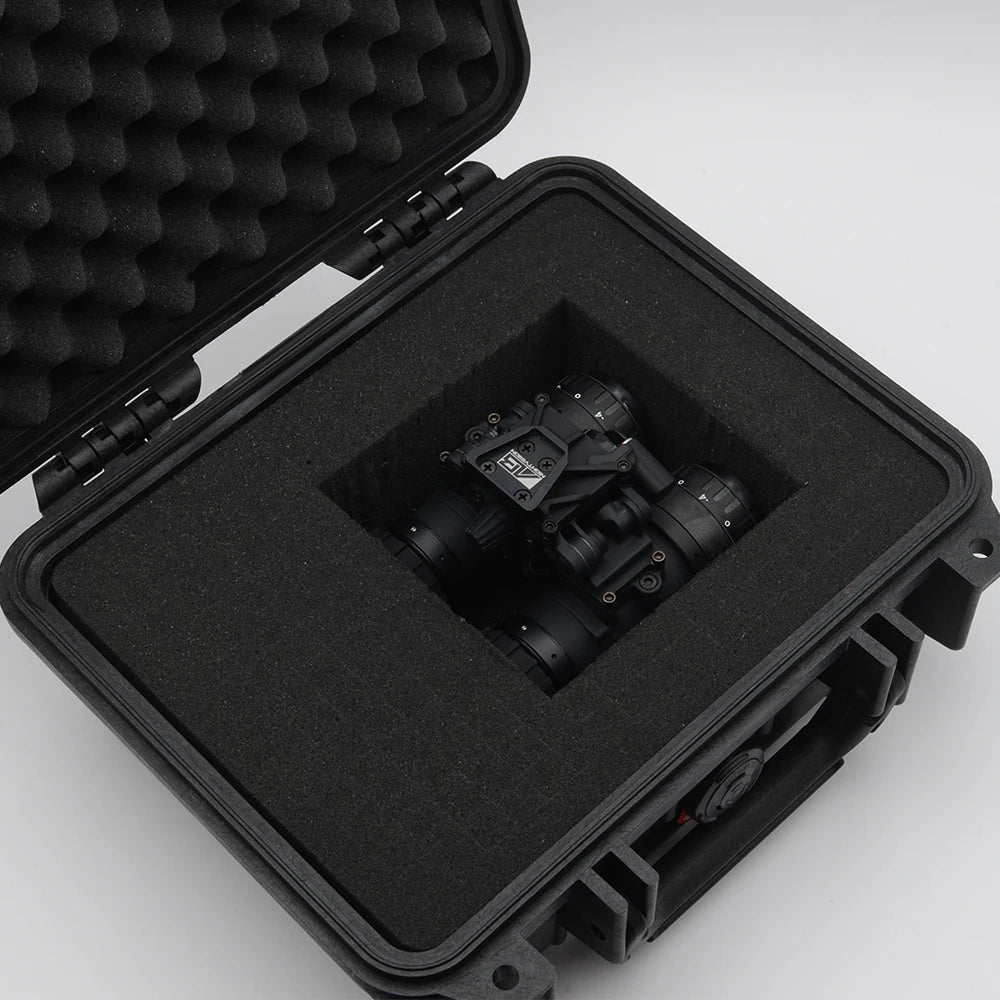

- Comes with a free Padded Optics Defender (POD) Pouch or a Peli 1200 Protective Case with Foam Insert. Please specify the desired product and color/variants in the order notes in the cart.
- Documentation Report and Image Intensifier Specification Sheets included
AB Nightvision MGA Systems are assembled and set up in-house in Germany using matched Photonis 4G White Phosphor Image Intensifer Tubes (Autogated + Manual Gain), together with lenses of your choice. The devices will be collimated on a mil-grade collimation and test station, followed by a vacuum leak test and argon purge to ensure water proofing.
Actual specs of available image intensifier tubes, and other tube configurations are available upon request.
Contact us for details.
Origin:
Housing Manufactured in USA
Lenses Manufactured in USA or Singapore
Image Intensifiers Manufactured in France/Netherlands (Photonis)
Assembled in Germany
Warranty
Our night vision devices carry a Lifetime Warranty against defects in workmanship and assembly unless otherwise specified. We guarantee our assembly to be free from manufacturing defects under normal use and in accordance with the product guidelines. Individual subcomponents follow specific manufacturer warranty periods.
