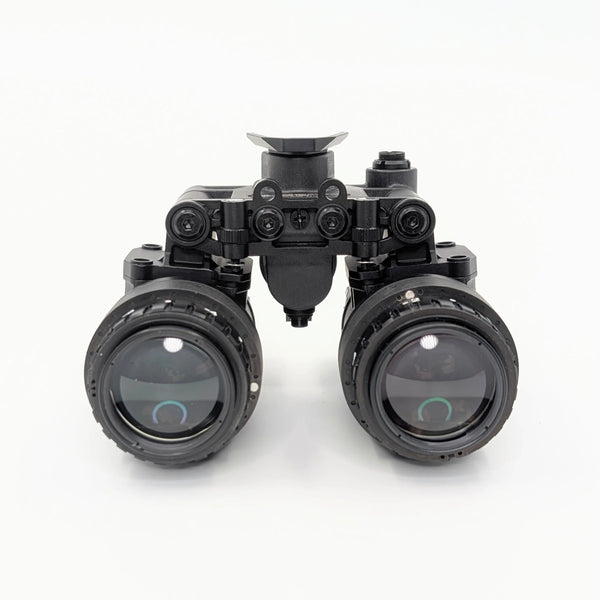

NVG-ALPHA | NNVT / Photonis

The NVG-ALPHA is a full featured, ruggedized night vision binocular made of both polymer and aluminum. Polymer is used to reduce weight while aluminum is used for strength in critical areas.

The ALPHA was designed with you the end user in mind. When articulated outwards the automatic independent pod shut off kicks in to mitigate splashback and light damage to your tubes. All electronic device features are controlled with the single central rotating push button. Manual gain can be adjusted by turning the knob. Gain memory allows the device to recall your settings when turning the device on and off. The power button requires a 1 second hold to power to reduce the chances of accidental device activation. Further button press sequences control your IR illuminator as well as toggling ON/OFF the different auto shutoffs and allow you to conduct a factory reset of the board if needed. The rear mounted interpupillary stops are extremely intuitive to adjust. Rolling the adjuster outward moves the pod outward, and rolling the adjuster inward adjusts the pod inward allowing a tailored fit to your anatomy.

Key Features:

• Robust aluminum hinge design
• Variable gain with all Photonis tubes and compatible NNVT tubes
• Gain memory remembers gain settings even when turning device off and on
• Individual pod shutoff when articulated (feature can be toggled ON/OFF)
• Automatic shutoff when flipped past vertical (feature can be toggled ON/OFF)
• 2 minute idle shutoff mitigates damage from devices being left on when not in use (feature can be toggled ON/OFF)

• Intuitive and ruggedized interpupillary stop design redirects all impact forces inwards into a reinforced aluminum plate

• Powered by single CR123A battery
• Optional remote battery pack with external 4 pin Fischer port
  • Mount compatibility for remote power: Wilcox G24 Lite, Wilcox G69, Cadex Low Profile Flip Up, Argus A4, F25

• Comes with a free Padded Optics Defender (POD) Pouch or a Peli 1200 Protective Case with Foam Insert.  Please specify the desired product and color/variants in the order notes in your cart.
• Cerakote finishes available upon request

NVG-ALPHA Systems are assembled and calibrated by our Partner ONSC in Canada on a Hoffman Engineering ANV-126A and HVS-126 inside their positive pressure clean room fitted with dual filtration blowers that meet ISO5 clean room specifications. The devices will be vacuum tested and argon purged using a digital purge machine to ensure water proofing.
Please contact us for details about the Photonis Hand Select process.

Specifications:

Construction: Polymer and Aluminum
Power: CR123A (~20 hours) or External Fischer
Operating Voltage: 1.2-5V
Operating Temperature: -51°C to +49°C
IR Illuminator: On Board
Manual Gain Control: Compatible with EGAC Pigtail, 3 Plate MX10160, 4 Plate MX10160
Weight: ~195g Housing Only, ~470g with RPO 3.0 Lenses and Lightweight Diopter, ~560g with BrightPath Solutions MIL40 Lenses, ~595g with Noctis/Fujinon Lenses
Shock/Drop Resistance: meets MIL-STD-810G Transit Drop
Water Immersion: meets IP68, 2 Meters for 1 Hour

Revision Notes:

• Serials 0100 and Onward
  • Controls spaced further from 2, 3, 4 button presses to 2, 4, 6 button presses
  • External power port moved to accomodate legacy G24 mounts


Quickstart Guide available in the Downloads Section Below

Built to order - Lead Time: 2-4 weeks
Every Unit (NNVT & Photonis) is shipped from germany within the European Union.

Origin:
Housing Components Made in China
Lenses Manufactured in USA or TAA Compliant Countries
Image Intensifiers Manufactured in France/Netherlands (Photonis) or China (NNVT)
Assembly, Final Testing and Quality Control done in Canada
