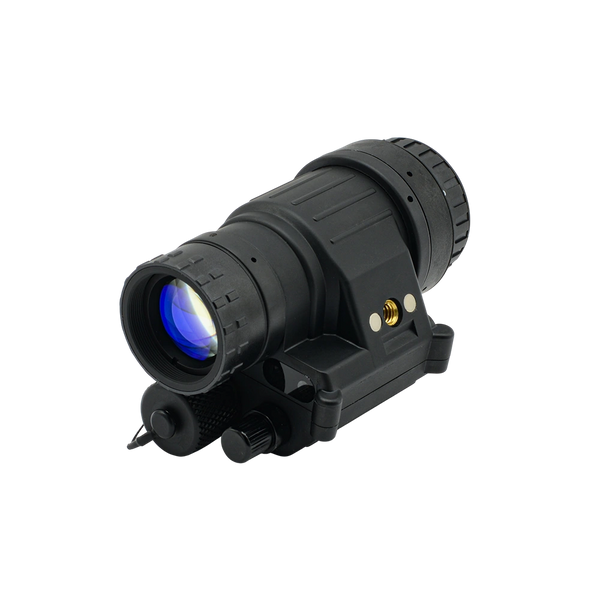

PVS-14 | NNVT / CETC White Phosphor

Best Value White Phosphor Night Vision Monocular – Custom-Built to Individual Specifications.

Configurable with:

• NNVT & CETC Image Intensifier Tubes
• Milspec and Commercial-Grade Housing and Lenses.

PVS-14 units are assembled and set up in-house in Germany.
Calibration and collimation close to boresight are performed on a mil-grade collimation and test station.

The device comes freshly vacuum tested and argon purged to ensure waterproofing - image intensifier specification sheet and documented report included.

Image Intensifer Tube Options:

• NNVT-5 1600+ FOM - AUTOGATED - White Phosphor (Manual Gain)
• NNVT-7 2000+ FOM - AUTOGATED - White Phosphor (Manual Gain)
• CETC 1400+ FOM - AUTOGATED - White Phosphor (Manual Gain)

• CETC 1800+ FOM - AUTOGATED - White Phosphor (Manual Gain)


*Important Note Regarding CETC Tubes:

We decided to source these tubes and take a closer look. Overall, their performance is solid and the image quality is good. However, it should be noted that our internal testing indicates actual gain values of CETC 1600+ and 1800+ FOM are lower than specified on the factory specsheets. Subtracting 2000 to 3000 from the rating on the specsheets brings them in line with NNVT and Photonis gain levels.

Housing Configuration & Key Features:

EON Housing

• Commercial Grade EON PVS-14 Housing

• Variable Gain Control
• IR-Illuminator + IR-Indicator LED
• Automatic bright light shut-off
• Low battery indicator
• Powered by single AA Battery (work best with Alkaline batteries due to on board voltage protection)
• Waterproof: IP68 2 Meters for 1 Hour
• Pinhole Cover included


Noctis / Carson Housing

• Field-proven US Milspec housing from Noctis Technologies.
• Complies with MIL-STD-810H
• Variable Gain Control
• IR-Illuminator + IR-Indicator LED
• Automatic bright light shut-off
• Low battery indicator

• Powered by single AA Battery
• Pinhole Cover, Rubber Eyecup and Retaining Ring included

Customizable Lens Systems:

• Norinco LW40 Lightweight Lens (Commercial)
• BrightPath Solutions MIL40 Lens (Milspec)
• Carson / Noctis (Fujinon) Lens (US Milspec)
• RPO NVD-Next Gen Lightweight Lens (US Milpec+)

Origin:
Image Intensifiers Manufactured in China (NNVT & CETC)
Housing Manufactured in China (EON) or USA (Noctis)
Lenses Manufactured China, USA or Singapore
Assembled in Germany
