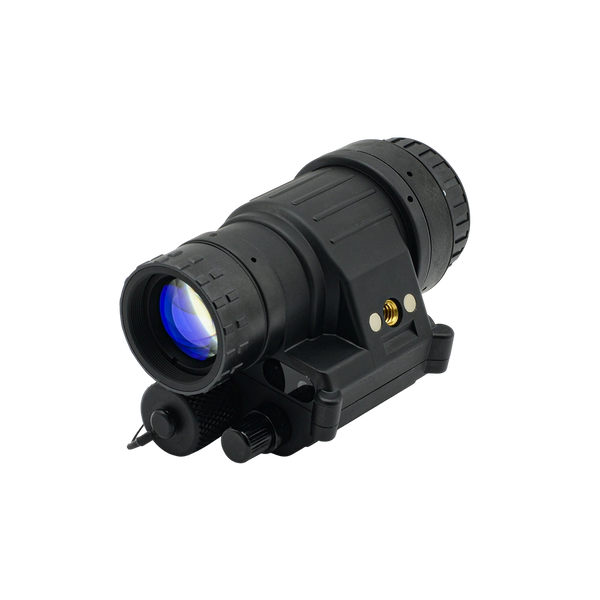

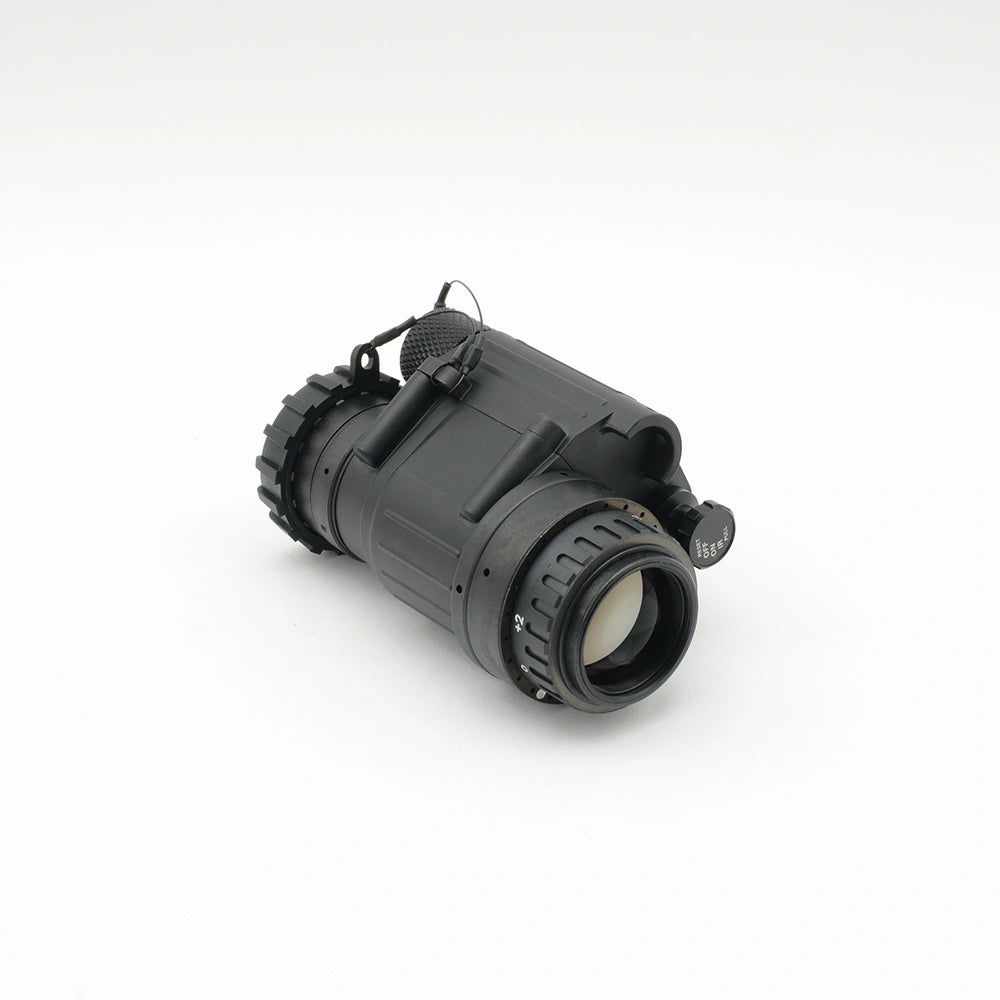

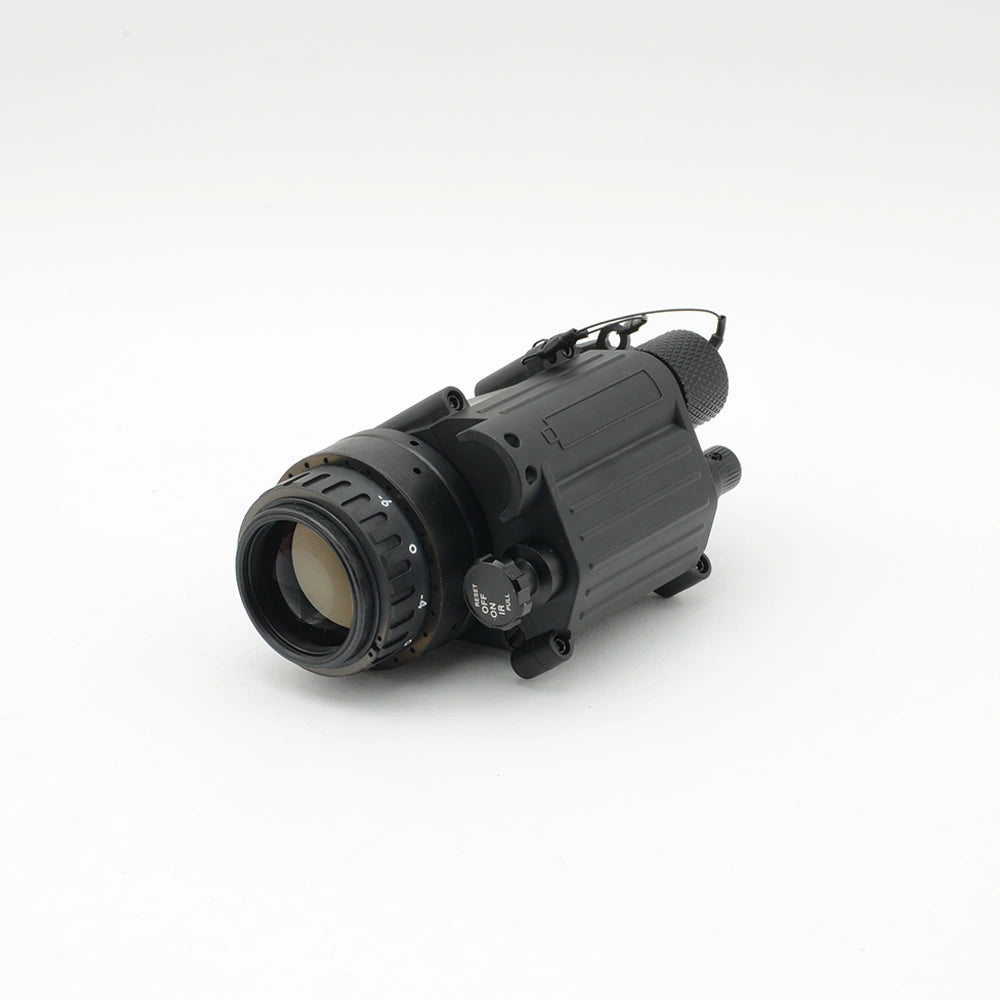

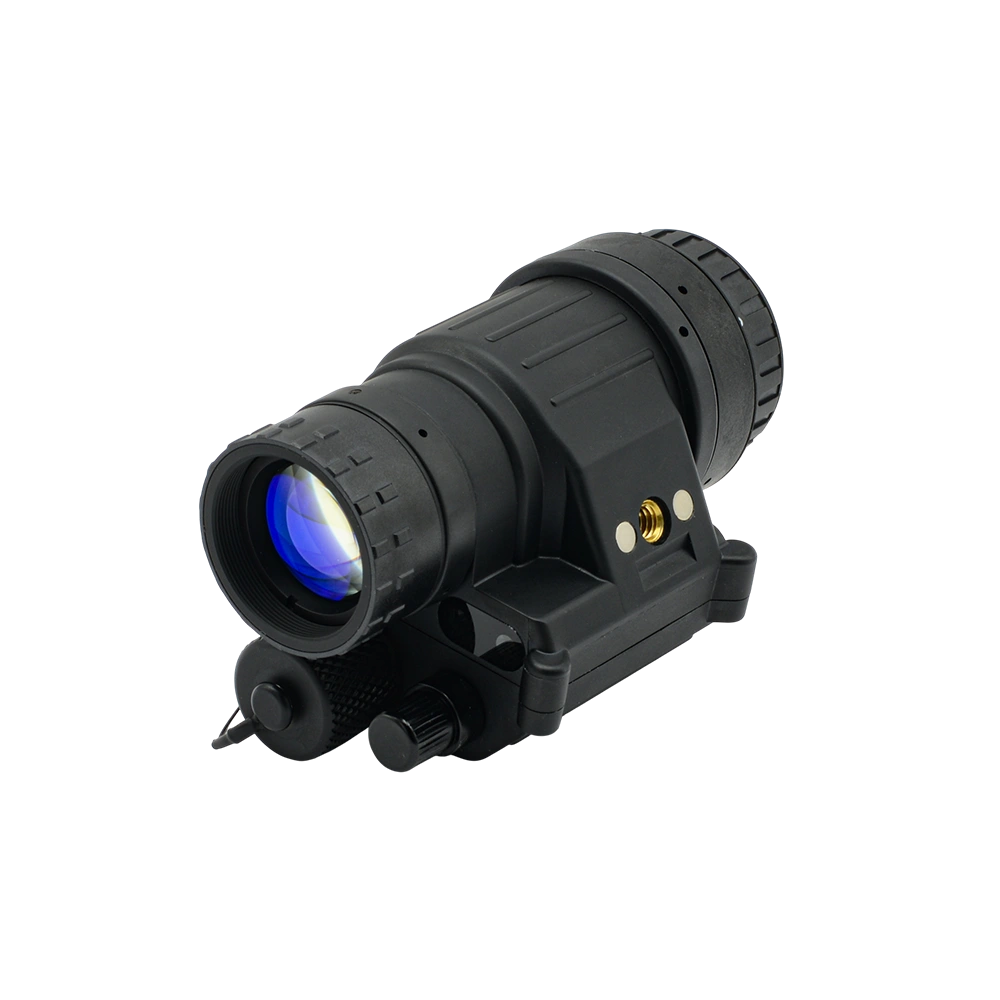

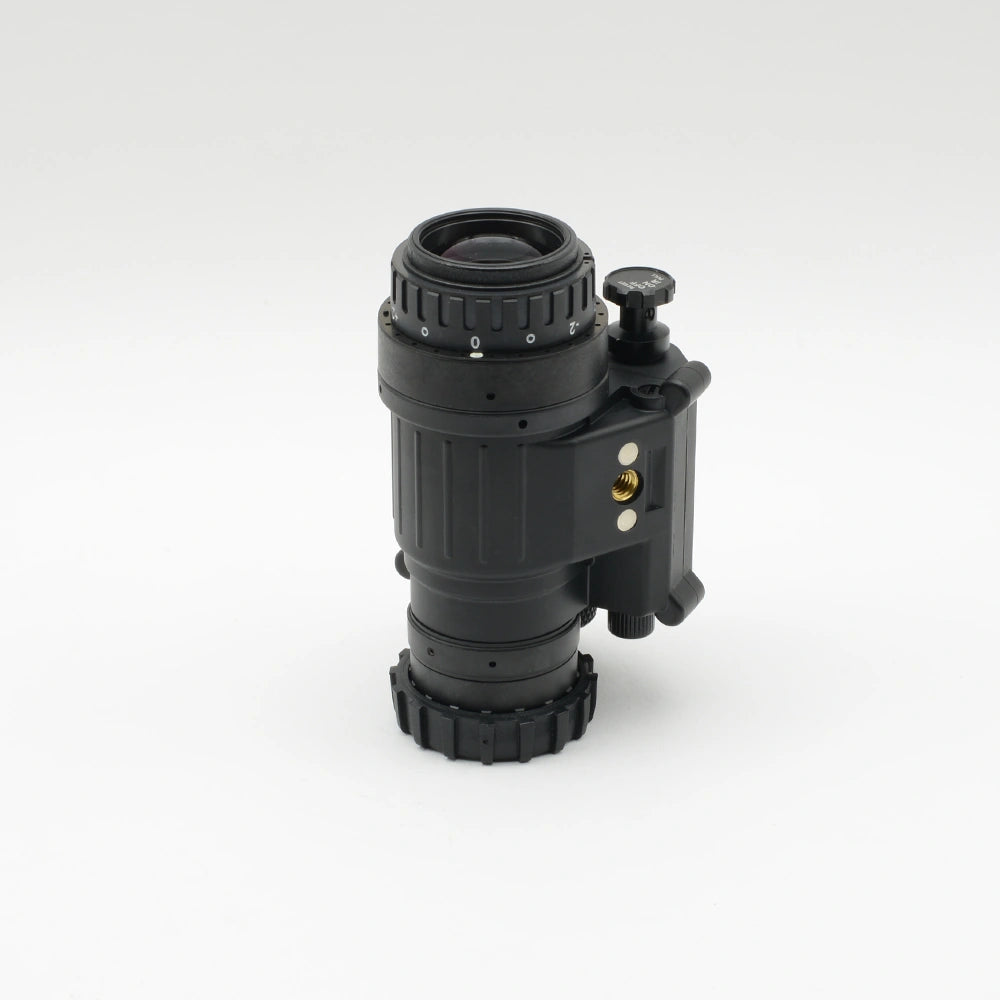

EON PVS-14 | Photonis XR-5 / 4G | Green Phosphor (Refurbished)

Configurable with:

• Image Intensifier Tubes: Photonis XR-5 or Photonis 4G (Autogated & Fixed Gain).

Key Features:

• Commercial Grade EON PVS-14 Housing
• BrightPath Solutions MIL40 Milspec Lens
• Powered by single AA Battery
• Waterproof: IP68 2 Meters for 1 Hour
• Pinhole Cover included
• Vacuum tested and argon purged to ensure waterproofing.
• Boresighted on our collimation system

• 1 Year Warranty on Housing and Image Intensifer Tube

• Includes a Documentation Report and Image Intensifier Specification Sheet (Photonis 4G)

EON Housings work best with Alkaline batteries due to on board voltage protection.

Image Intensifer Tube Specifications:

XR-5:
FOM: 1600 min
Resolution: 64 min
Gain: 12.000 - 23.000 (~ 37.700 - 72.255 converted to US gain units)

4G:
FOM: 1900 min
Resolution: 64 min
Gain (EU): 15.000 - 18.000
Gain (converted to US units): 47.000 - 56.500
SNR: 26 min

These are used dealer-surplus tubes, refurbished in the sense that they have been checked for functionality and come with a 1-year warranty.

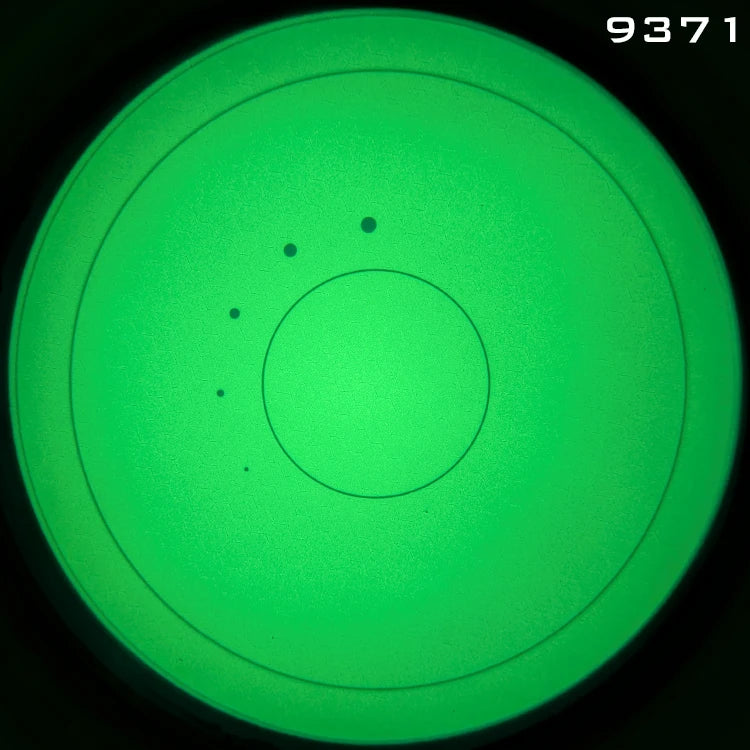

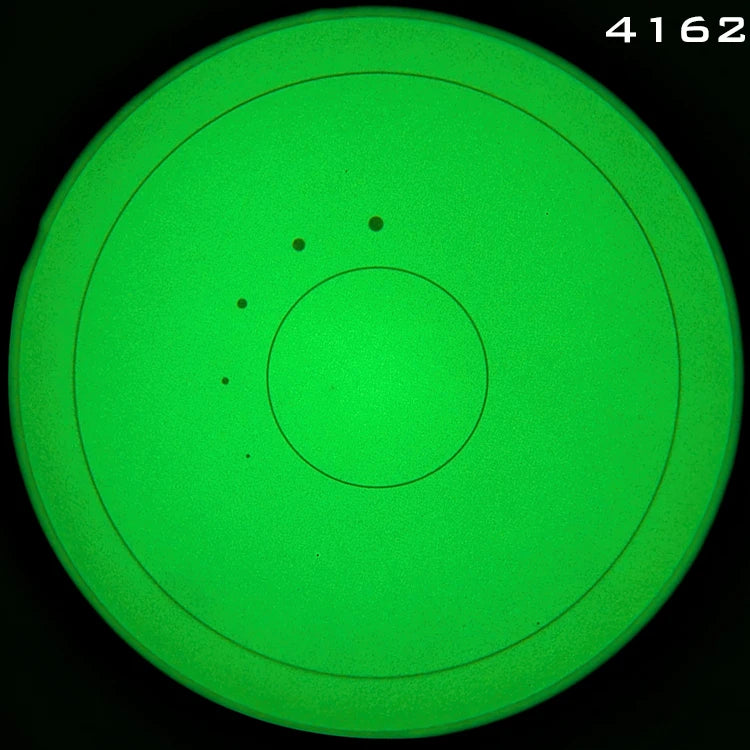

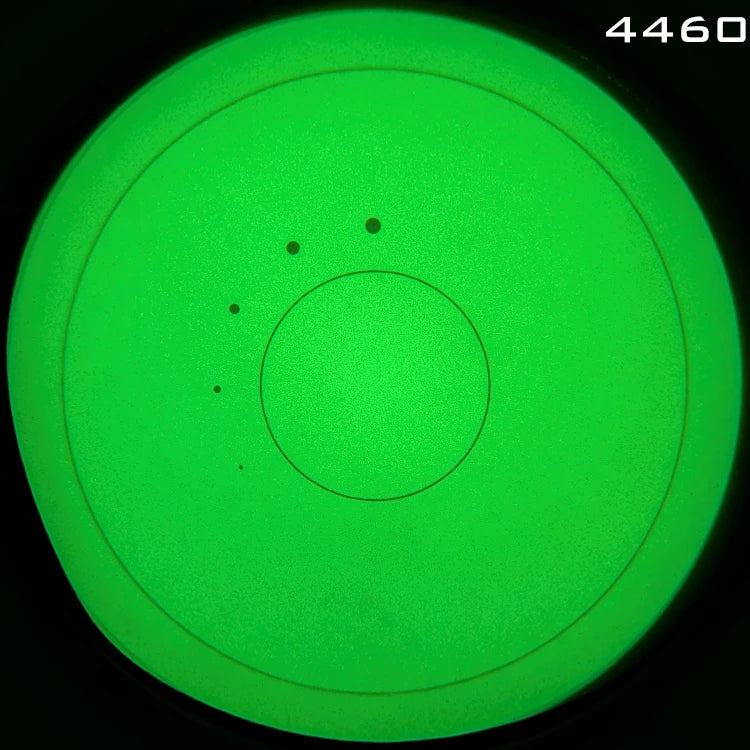

Grading Overview:

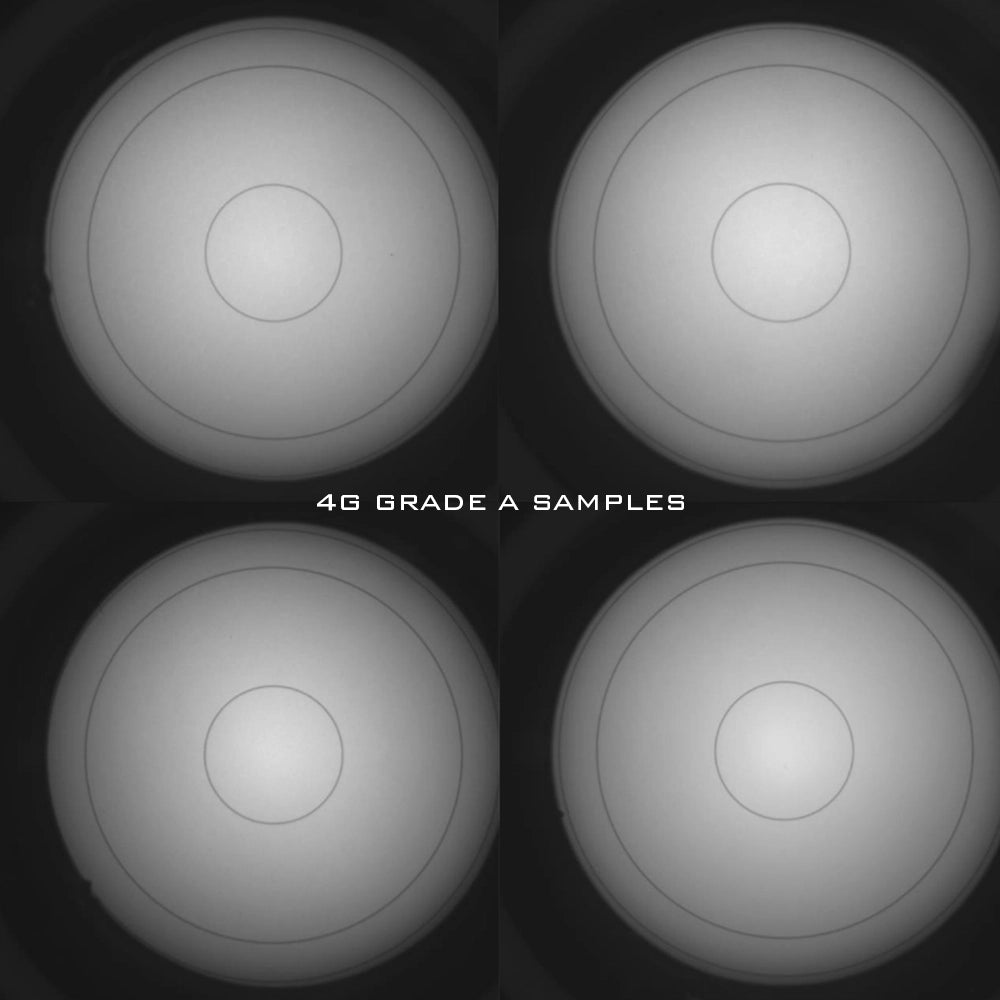

Grade A is mostly clean; only small spots or blemishes are allowed.
Grade B1: spots and blemishes allowed but mostly clean.
Grade B2: larger spots and blems.
Grade C has significant cosmetic issues.
We offer Grade C Tubes for experimental purposes. This grade is not available for our custom EON PVS-14 Builds.

Origin:
Image Intensifiers Manufactured in France/Netherlands
Housing Manufactured in China
Lenses Manufactured Singapore
Assembled in Germany
