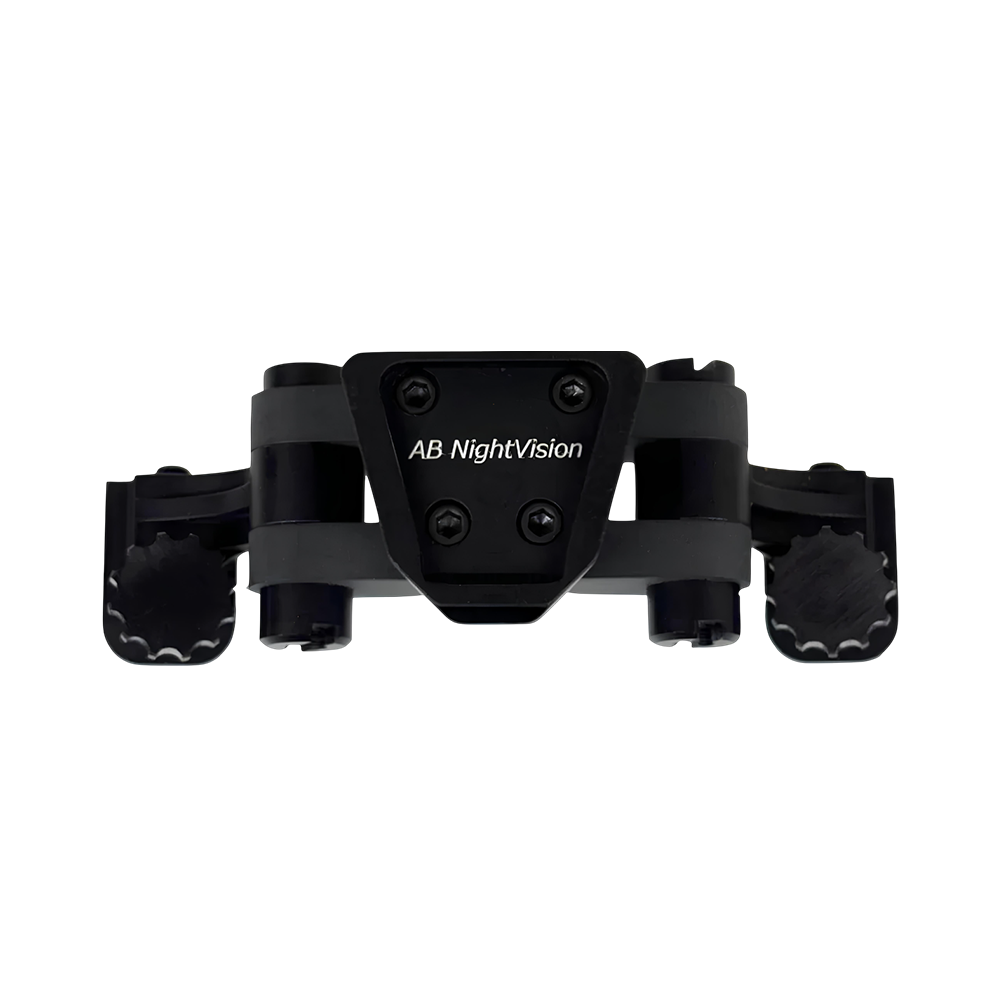

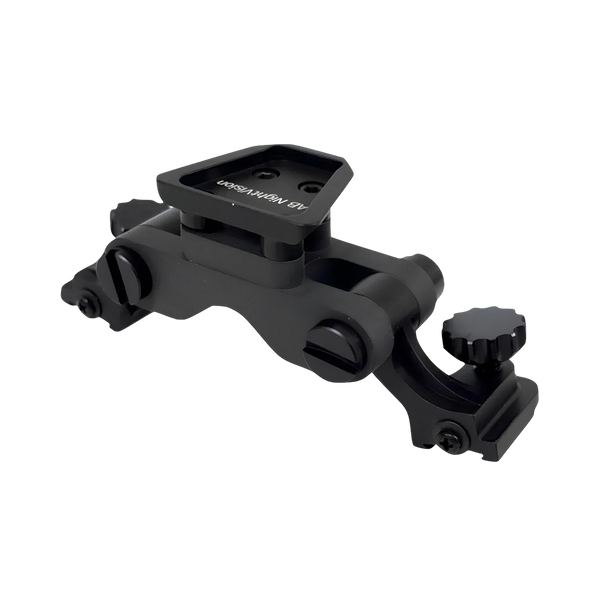

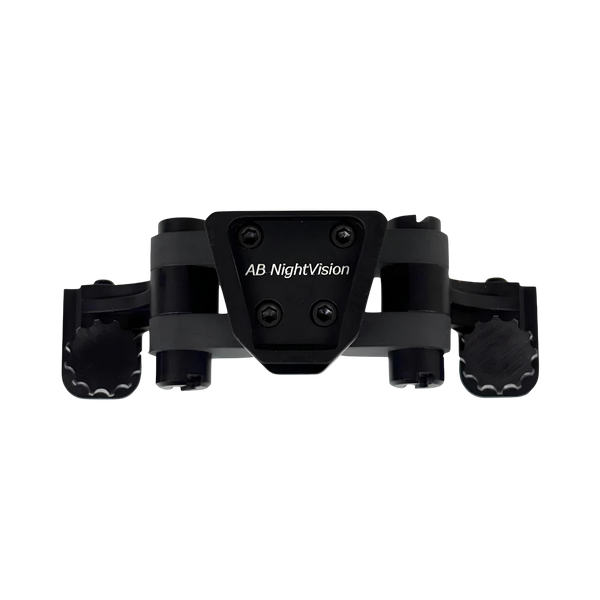

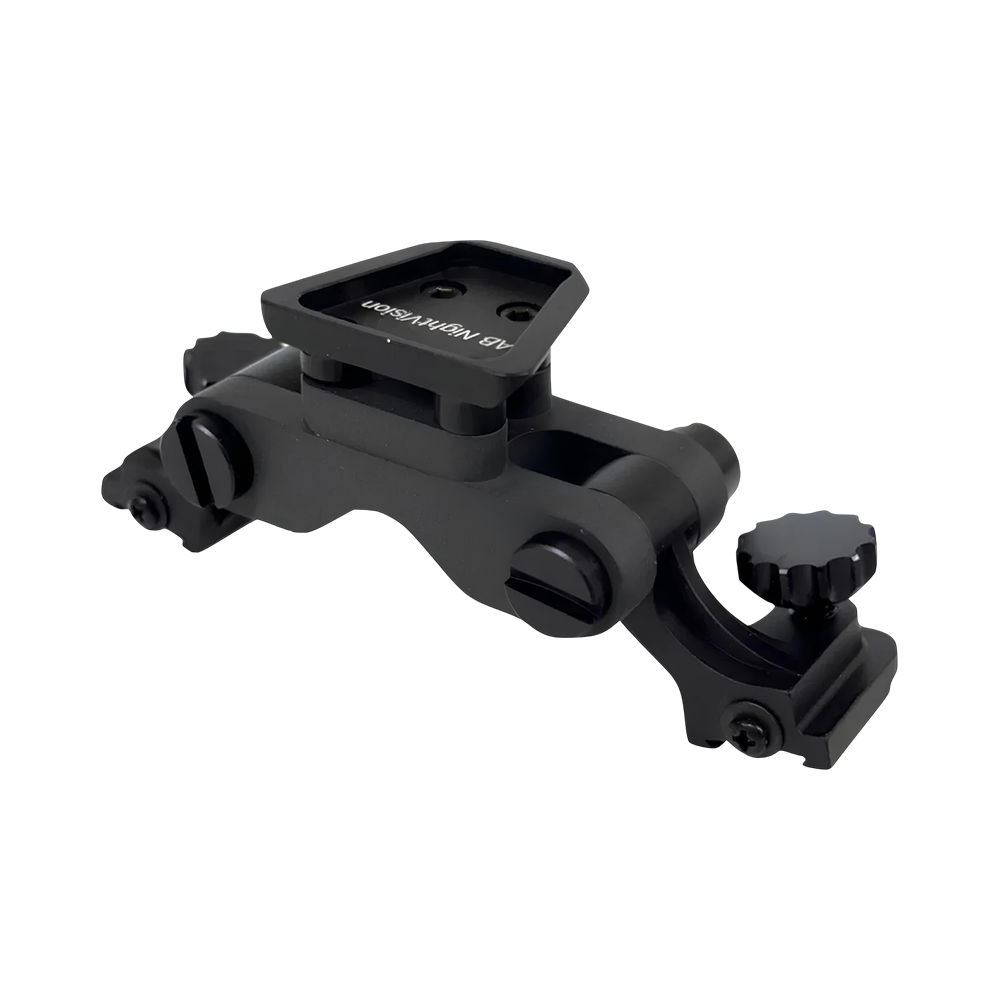

RVM-14 Bridge Mount will allow users to bridge two RVM-14’s together to be used a bino setup. The bridge arranges the RVM-14 in the same vertical orientation. The arms can also be easily removed for single mono use. Both the Arm and the Bridge are articulating.
NOTE: This bridge will only work with the RVM-14 as it uses a proprietary interface.
BRIDGE / ARM OPERATION:
- To connect the Arm or Bridge to the monocular, first ensure that the Latch Screw is fully retracted by rotating it counterclockwise until it stops.
- Slide the Mounting Shoe of the Arm or Bridge onto the Dovetail Mount of the Mono.
- Engage the Latch Screw by turning it clockwise until it stops. Ensure that the Latch Screw is properly engaged by attempting to slide the Mounting Shoe. It should not move.
- Remove the Arm or Bridge by retracting the Latch Screw fully counterclockwise and then sliding the Mounting Shoe off of the Dovetail Mount.
- To adjust the pivot tension of the Arm or Bridge use a coin in either end of the Tension Bolt to tighten or loosen as desired.
